QXEP-MR

QxControl Input/Output Modules, powered by HID Mercury

MR16-OUT-mercury-security-1705-1021-transparent-800

QXEP-MR Overview

QXEP Serial I/O Modules are powered by the HID Mercury MR Series 3 Serial Input/Output (SIO) module platform. These modules enable system expansion of HID Mercury intelligent controllers as part of HID Mercury’s distributed architecture. The enhanced modules offer an improved processor and increased memory, plus features an embedded crypto memory chip that provides a secured layer of encryption to onboard sensitive data. Built on the HID Mercury open platform, Series 3 modules provide the necessary flexibility to choose the controller configuration that best fits your needs.

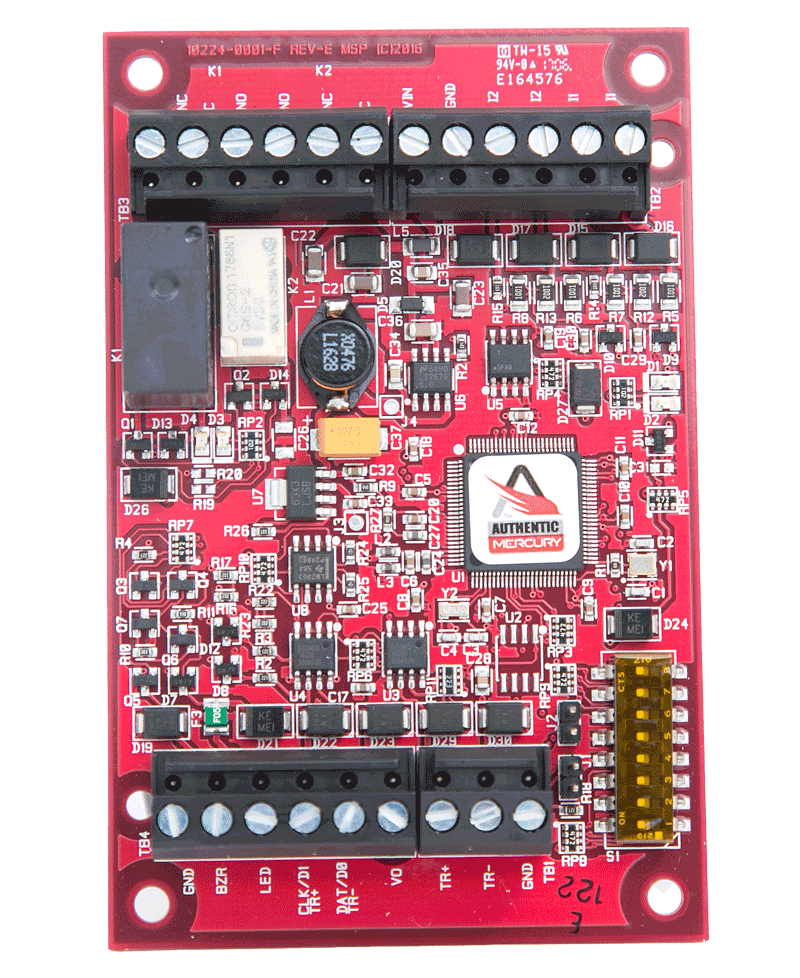

QXEP-MR50-S3

Powered by HID Mercury, The QXEP-MR50 Series 3 is an enhanced SIO single card reader interface panel dedicated to individual door oversight and provides of all the I/O needed for controlling a single door. Each QXEP-MR50 connects one card reader, two general purpose input monitor points and two control relays for access control and security monitoring through a QXEP intelligent controller.

With two-wire RS-485 connectivity, the MR50 reader port supports OSDP, OSDP Secure Channel, FICAM government profiles, keypads, biometric readers, Wiegand, clock and data, magnetic stripe, F/2F and supervised F/2F reader technologies. The QXEP-MR50 Series 3 is the latest generation door interface module for HID Mercury intelligent controllers, the platform of choice for customers seeking open architecture access control solutions.

QXEP-MR50-S3 Spec Sheet >>>

MR50-mercury-security-1705-1001-transparent-800b

QXEP-MR52-S3B

Powered by Mercury, The QXEP-MR52 Series 3 is a card reader interface panel with on-board flexibility to connect a wide range of security devices. The QXEP-MR52 is easy to install and provides the required I/O for interfacing two card readers, eight general-purpose input monitor points and six control relays to any HID Mercury series intelligent controller.

With two-wire RS-485 connectivity, the QXEP-MR52’s two reader ports support OSDP,OSDP Secure Channel, FICAM government profiles, keypads, biometric readers, Wiegand, clock and data, magnetic stripe, F/2F and supervised F/2F reader technologies. The QXEP-MR52 Series 3 is the latest generation door interface module for HID Mercury intelligent controllers, the platform of choice for customers seeking open architecture access control solutions.

QXEP-MR52-S3B Spec Sheet >>>

mercury-security-1705-1033-transparent-800

QXEP-MR62e

Powered by Mercury, the MR62e Series 3 is an IP-enabled interface module with on-board flexibility to connect a wide range of security devices. The QXEP-MR62e is easy to install and provides the required I/O for interfacing four card readers using OSDP protocol, six general-purpose input monitor points and four control relays to any HID Mercury intelligent controller.

The QXEP-MR62e provides increased power output using PoE+ and provides one reader port supporting OSDP Secure Channel readers, including non-keypad, keypad and biometric readers. The QXEP-MR62e Series 3 is the latest generation door interface module for HID Mercury intelligent controllers, the platform of choice for customers seeking open architecture access control solutions.

QXEP-MR62e Spec Sheet >>>

mr62e-angled-2-transparent-800

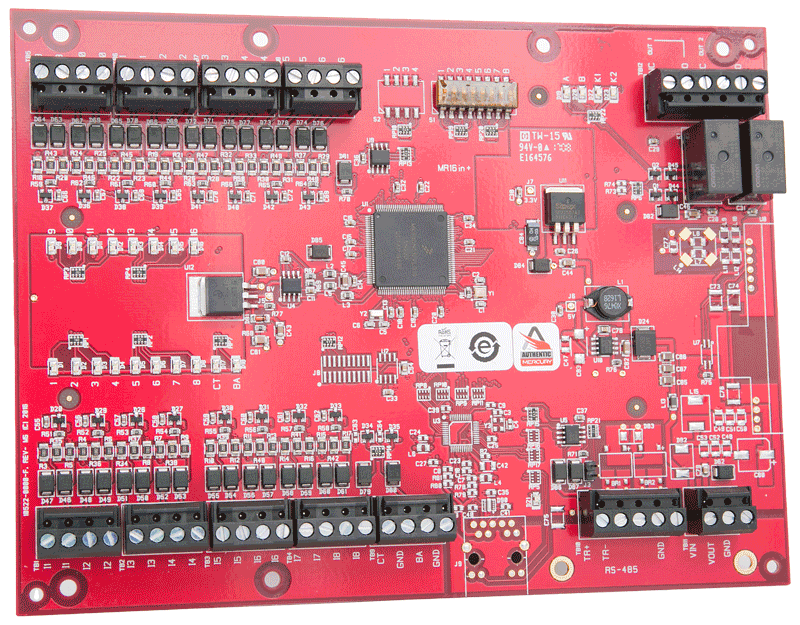

QXEP-MR16IN-S3

Powered by Mercury, The QXEP-MR16IN can be used for a variety of applications, including status annunciation and alarm monitoring applications such as lighting, heating/cooling, door and elevator control. Devices can also be activated by the condition of selected system devices, either locally or regionally, without host intervention. The panel is dedicated to point control and monitoring, enabling support for 16 general-purpose input circuits. The circuits can be individually set for sensitivity ranges, timing parameters (normally-open or normally-closed operations) and end-of-line resistance values. They can also be declared supervised and non-supervised.

Two programmable relay outputs are configurable for fail-safe or fail-secure operation, supporting “On,” “Off,” “Pulse” and “Repeating Pulse” commands. The QXEP-MR16IN Series 3 is the latest generation door interface module for HID Mercury intelligent controllers, the platform of choice for customers seeking open architecture access control solutions.

QXEP-MR16IN-S3 Spec Sheet >>>

MR16-IN-mercury-security-1705-1011-transparent-800

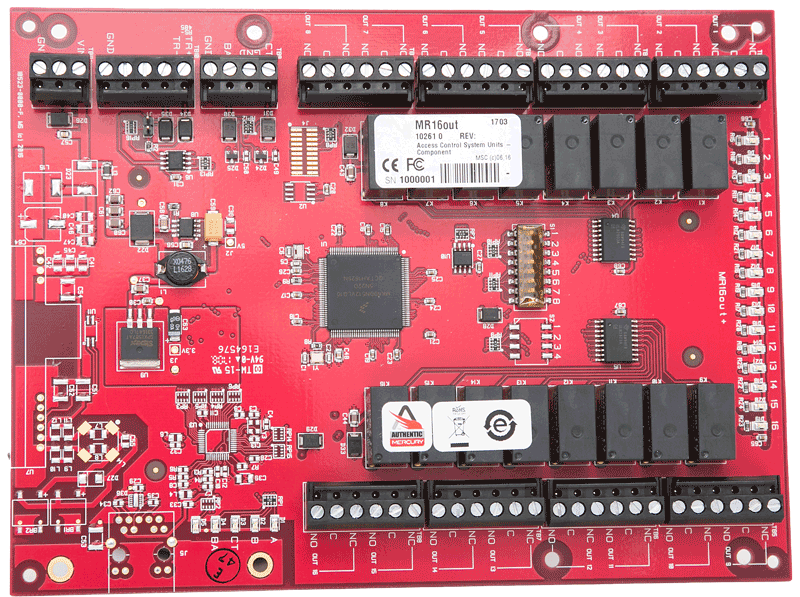

QXEP-MR16OUT-S3

Powered by Mercury, The multi-device QXEP-MR16OUT Series 3 interface panel is dedicated to point control and monitoring, providing 16 general-purpose outputs as Form C relay contacts. The QXEP-MR16OUT also provides individually configurable parameters that can be set for timing and for fail-safe versus fail-secure modes.

The QXEP-MR16OUT is configurable to control a variety of outboard devices for general facility control such as lighting, heating/cooling, door and elevator control. Devices can also be activated by the condition of selected system devices, either locally or regionally, without host intervention. The QXEP-MR16OUT Series 3 is the latest generation door interface module for HID Mercury intelligent controllers, the platform of choice for customers seeking open architecture access control solutions.

QXEP-MR16OUT-S3 Spec Sheet >>>

MR16-OUT-mercury-security-1705-1021-transparent-800

All Qumulex Enterprise Panels are NDAA compliant.
