QxStation

QxControl Appliances with Local Storage

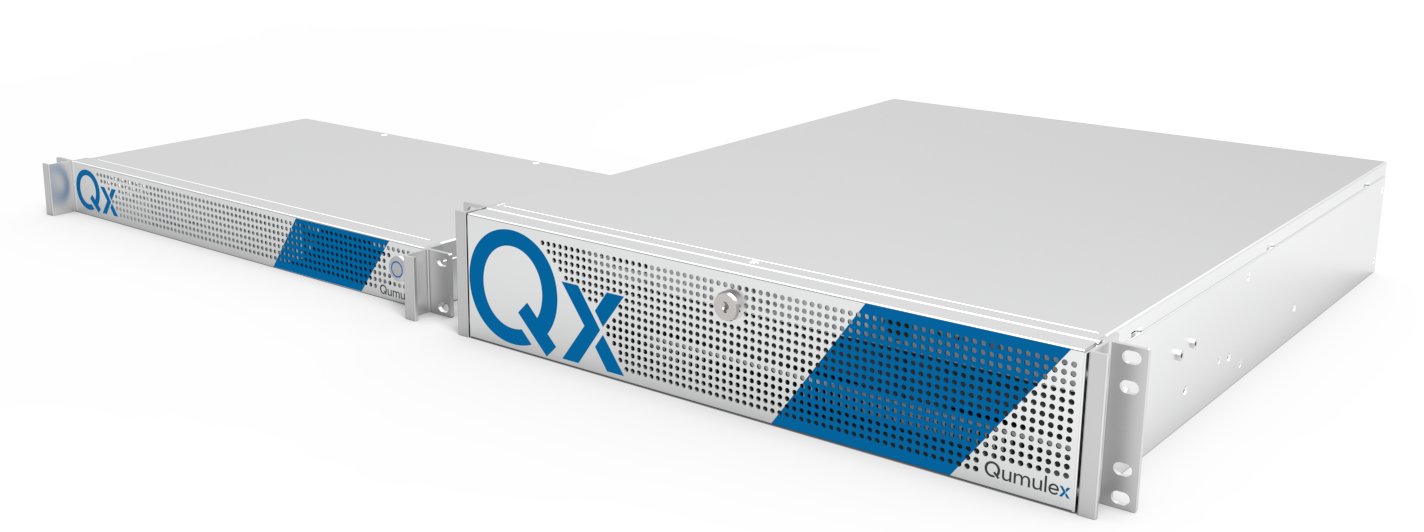

qxstation-1U_2U-cropped2





QxStation Overview

QxStation provides a hybrid cloud/on-premise environment that supports moving to the cloud at any pace.  QxStation appliances can either be cloud connected to take advantage of cloud-based management, monitoring and video storage, or be an on premises-only solution. Selectable local storage provides event driven or continuous recording options.

  • Available in standard 1U and 2U rackmount formats
  • Supports from 16 cameras/32 total resources, to 128 cameras/256 total resources
  • Solid state storage for the OS to ensure reliability
  • Dual network ports to isolate all device communication from the user network
  • Broad selection of storage options
  • Buffering storage of video to handle interruptions and fluctuations in network connectivity
  • Direct access for live viewing available when network connectivity is lost
  • QxStation provides local intelligence for video and access control management via local rules engine, and more secure local operation
  • Capable of both local and cloud recording, available in a variety of storage options
  • Three year warranty


QxStation 300

  • Up to 16 cameras and 32 total resources
  • Up to 12TB of local storage
  • Intel Apollo Lake SoC Processor
  • 8GB Memory
  • Dual GigE ports
  • 90-264 VAC / 47-63 Hz
  • Input Power: Max 200 Watts
  • Operating Temp: 10°C-35°C
  • Weight: 9.6 lbs (4.4 kg)
  • 1U form factor, 19”w x 10.6"d x 1.75"h
  • Three year warranty
  QxStation 300 spec sheet

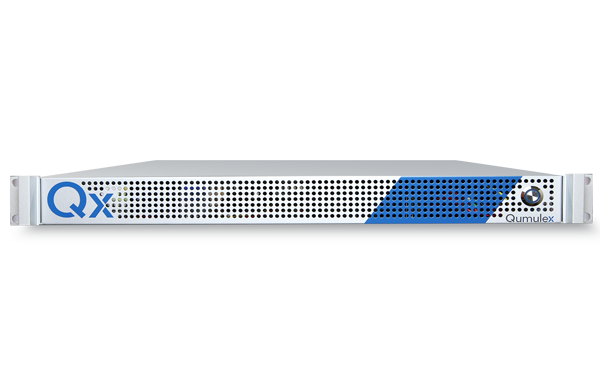

1U_Front_Perspective600b


QxStation 500

  • Up to 32 cameras/64 total resources (QXS500) and 128 cameras/256 resources (QXS500-UP)
  • Up to 56 TB local storage
  • Intel Core Processor
  • 16GB Memory
  • Dual GigE ports
  • 90-264 VAC / 47-63 Hz
  • Input Power: Max 400 Watts
  • Operating Temp: 10°C-35°C
  • Weight: 32.6 lbs (14.8 kg)
  • 2U form factor, 19"w x 22.25"d x 3.5"h
  • Three year warranty
  QxStation 500 spec sheet

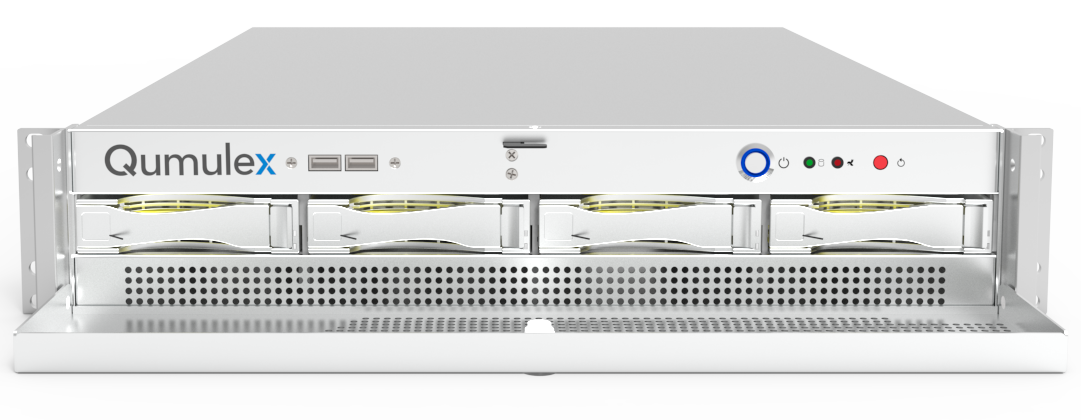

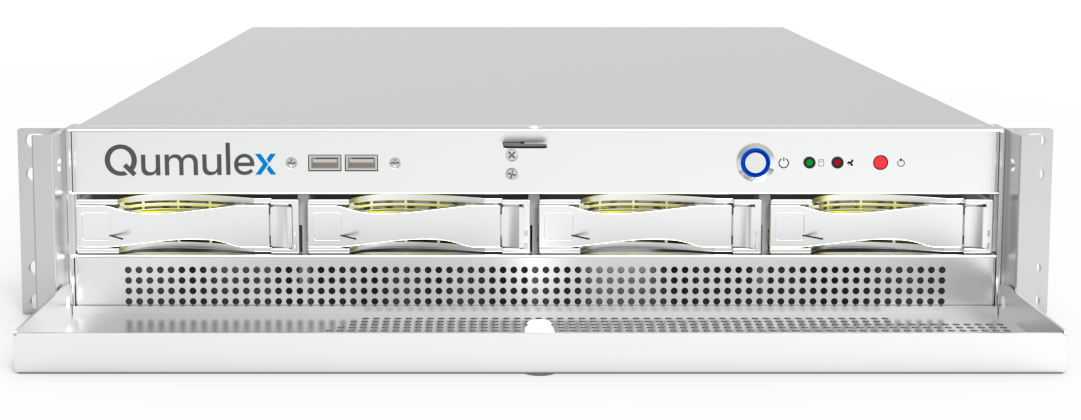

qx_2U_cover_down-162-croppeda

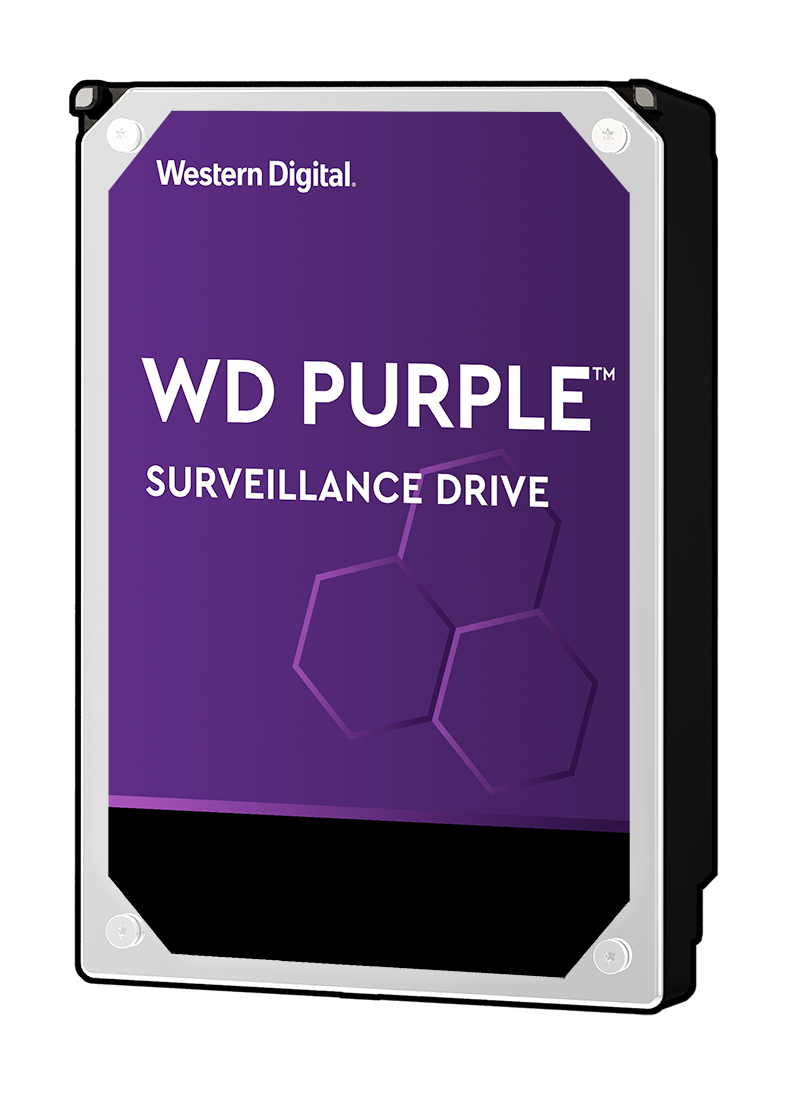

All QxStation Appliances use Western Digital Purple surveillance drives.

WD_Purple_LR-BLANK
