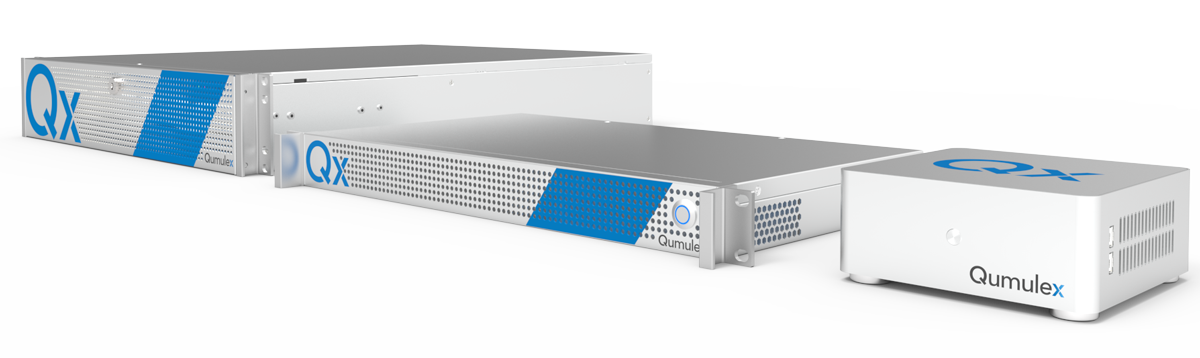

1U_2U_DT_Link-151cropped





QxLink Overview

The QxLink family of gateway appliances are designed for an all-cloud experience where key clips of video and access control events are automatically uploaded to the cloud. QxLink provides local intelligence for video and access control management, local rules engine, and more intelligent local operation.

  • Available in compact desktop, 1U rackmount, and 2U rackmount formats
  • Supports up to 16 cameras/32 total resources, and up to 128 cameras/256 total resources on the QXL200-UP
  • Solid state storage for the OS to ensure reliability
  • Dual network ports isolate all device communication from the user network
  • Buffering storage of video to handle interruptions and fluctuations in network connectivity
  • Direct access for live viewing available when network connectivity is lost
  • QxLink provides local intelligence for video and access control management via local rules engine, and more secure local operation.
  • Three year warranty


QxLink 110

QxLink 110 is a QxControl gateway appliance in a compact desktop format, perfect for limited space installations where a full cloud experience is desired.

  • Up to 16 cameras and 32 total resources
  • Intel Apollo Lake SoC Processor
  • 8GB Memory
  • Dual GigE ports
  • 120-240 VAC / 50-60Hz
  • Operating Temp: 10°C-35°C
  • Weight: 4.1 lbs (1.9 kg)
  • Compact form factor: 7.9” w x 7.9”d x 3.5”h
  • Three year warranty
  QxLink 110 spec sheet
qx_link_desktop-2


QxLink 120

QxLink 120 is a 1U rackmount cloud gateway appliance designed for secure rackmount installations where a full cloud experience is desired. Fits a standard 19” rack.

  • Up to 16 cameras and 32 total resources
  • Intel Apollo Lake SoC Processor
  • 8GB Memory
  • Dual GigE ports
  • 90-264 VAC / 47-63 Hz
  • Input Power: Max 200 Watts
  • Operating Temp: 10°C-35°C
  • Weight: 9.6 lbs (4.4 kg)
  • 1U form factor, 19”w x 10.6"d x 1.75"h
  • Three year warranty
  QxLink 120 spec sheet
qx_link_1u-2


QxLink 200

QxLink 200 is a 2U rackmount cloud gateway appliance designed for secure rackmount installations for full cloud deployments with large numbers of cameras/resources.

  • Up to 32 cameras/64 total resources (QXL200)
  • Up to 128 cameras/256 total resources (QXL200-UP)
  • Intel Core Processor
  • 16GB Memory
  • Dual GigE ports
  • 90-264 VAC / 47-63 Hz
  • Input Power: Max 400 Watts
  • Operating Temp: 10°C-35°C
  • Weight: 32.6 lbs (14.8 kg)
  • 2U form factor, 19"w x 22.25"d x 3.5"h
  • Three year warranty
  QxLink 200 spec sheet

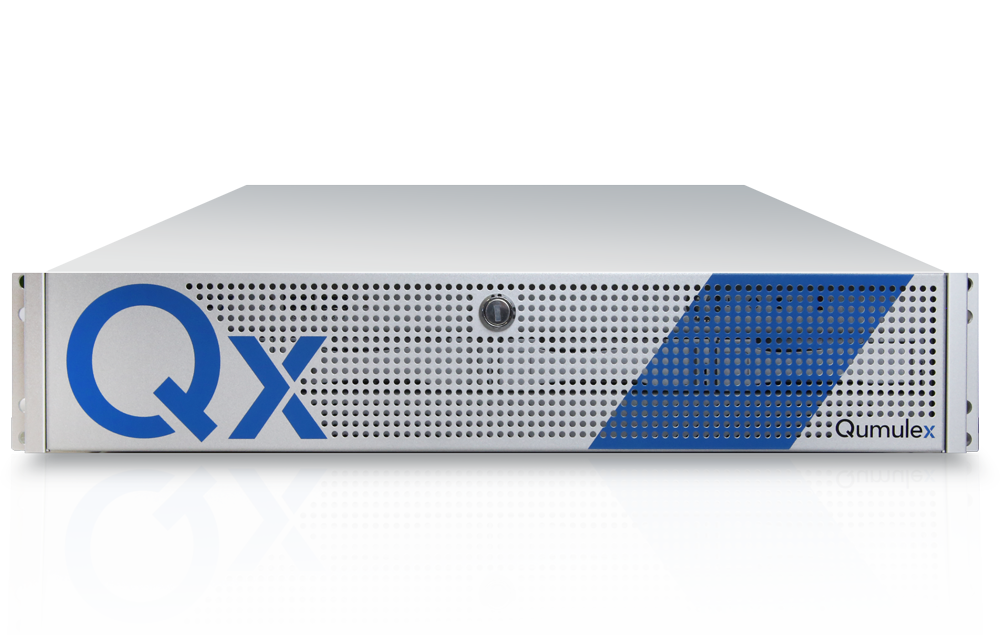

QXL200a

All QxLink Appliances use Western Digital Purple surveillance drives.
