QxControl GATEWAYS

QxPower

Enterprise-Class QxControl Gateways with Local Storage

QxPower Overview

The QxPower series is designed for mission-critical applications. Designed for high availability with multiple redundant systems and greatly extended storage options, the QxPower gateways come in both 1U and 2U rackmount form factors and a wide variety of storage options.

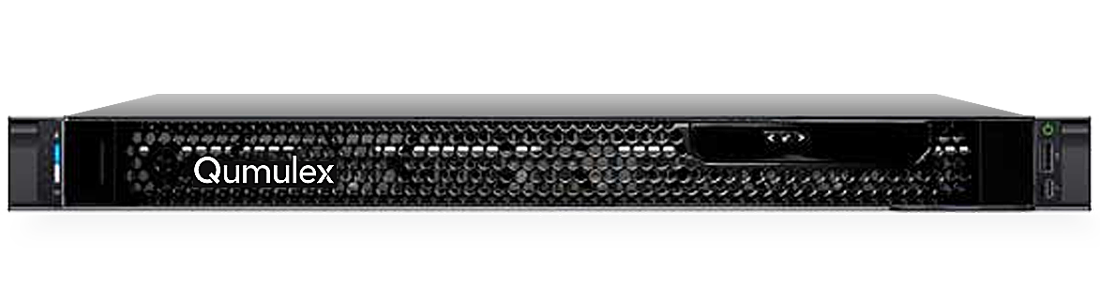

QxPower 710

  • Up to 96 cameras or 96 total resources
  • Up to 56TB of usable local storage
  • RAID 5 Redundancy of local video storage
  • Intel Xeon Processor
  • 32GB Memory
  • Dual GigE ports
  • 100-240Vac / 50-60 Hz
  • Input Power: 550 Watts
  • Operating Temp: 10°C-35°C
  • Weight: 39 lbs (17.7 kg)
  • 1U form factor, 19"w x 28.7"d x 1.75"h
  • Warranty: 5 year, On-site, NBD
>>  QxPower 710 Spec Sheet
qx_power_1U-cropped

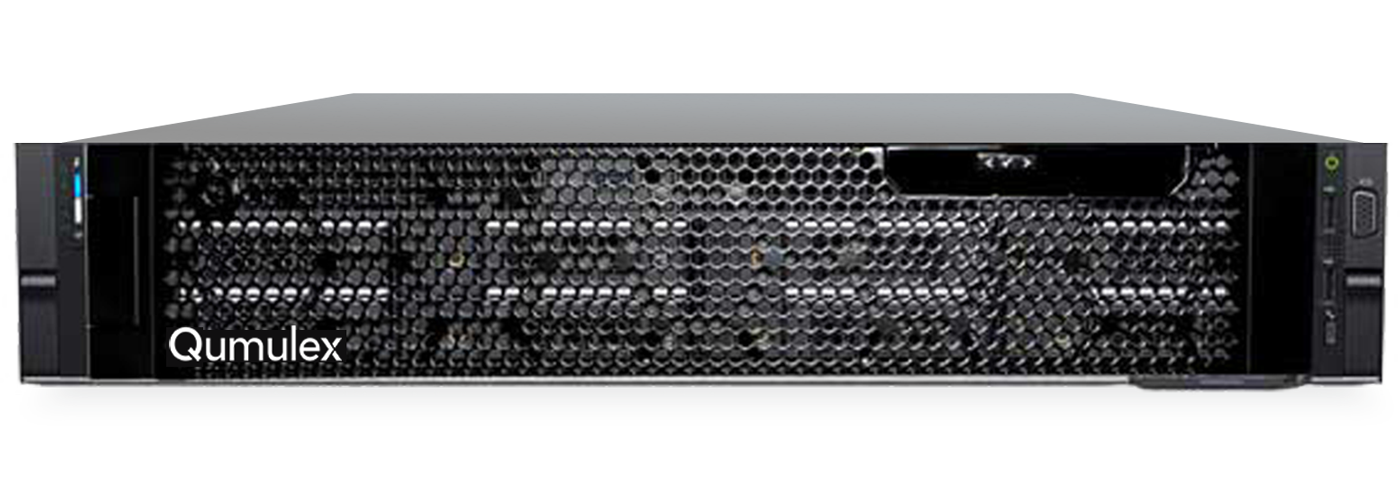

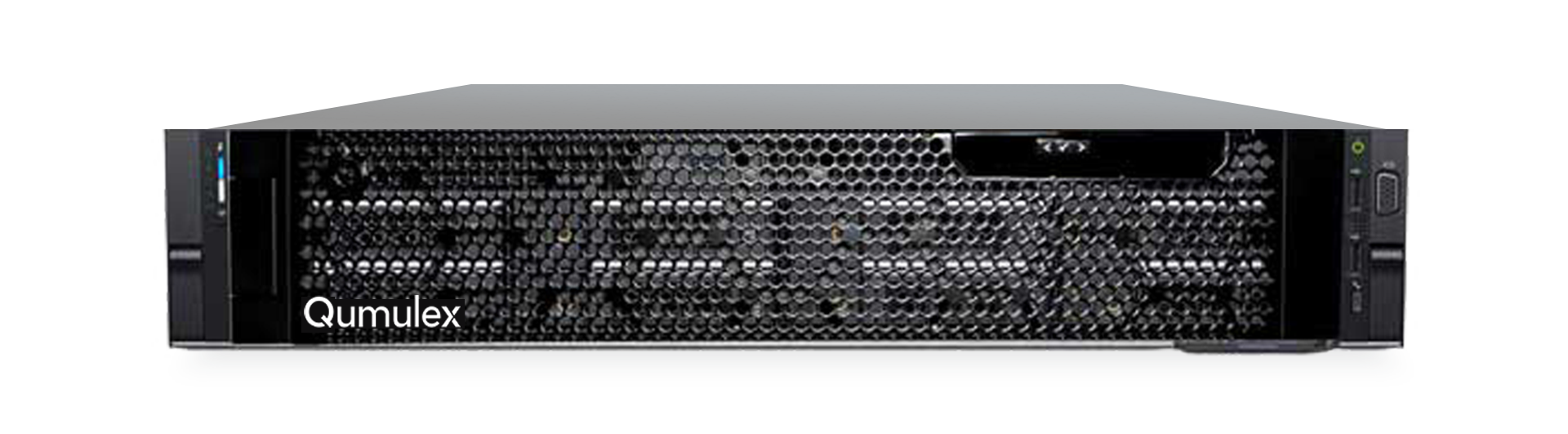

QxPower 720

  • Up to 96 cameras or 96 total resources
  • Up to 168TB usable local storage
  • RAID 6 Redundancy of local video storage
  • Intel Xeon Processor
  • 32GB Memory
  • Dual GigE ports
  • 100-240Vac / 50-60 Hz
  • Input Power: 1100 Watts
  • Operating Temp: 10°C-35°C
  • Weight: 65.5 lbs (29.7 kg)
  • 2U form factor, 19"w x 28.7"d x 3.5"h
  • Warranty: 5 year, On-site, NBD
>>  QXPOWER 720 SPEC SHEET
qx_power_hero-2-cropped

All Qumulex Gateways are NDAA compliant.

Learn more

NDAA-02ps

Key features include:

  • Available in standard 1U and 2U rackmount formats
  • Mirrored solid state storage for the OS to ensure reliability
  • Dual network ports isolate all device communication from the user network
  • Dual power supplies for redundancy
  • RAID 5 or 6 to ensure local video storage can survive a drive failure
  • Buffering storage of video to handle interruptions and fluctuations in network connectivity
  • Direct access for live viewing available when network connectivity is lost
  • QxPower provides local intelligence for video and access control management via local rules engine, and more secure local operation
  • Capable of both local and cloud recording, available in a variety of storage options
  • Five year warranty, Next Business Day, On-Site service
